C41QS NB2/NB1 IoT Module
C41QS is Cavli’s entrant in the all-new NarrowBand-Internet of Things (NB-IoT) platform, based on low power wide area networks (LPWAN) technology. The C41QS is a NB2/NB1 Module compatible with 3GPP E-UTRA Release 14 standards supporting a wide array of frequency bands, making it usable globally while providing leverageable low-power consumption. The module is designed in a compact form factor of 17.7mm x 15.8mm x 2.0mm, making it an ideal solution for applications where size is constrained. The module supports an optional integrated GNSS and integrated eSIM, enabling Global Connectivity and Device management features powered by Cavli’s proprietary Hubble platform..
C41QS is ideal for applications that demand low space, low power consumption and aggressive pricing. It is suited for applications such as smart metering, smart parking, sensor and monitoring applications etc.
Key Highlights
Powered by Cavli Hubble
Applicable Regions - GLOBAL
integrated eSim
Available Form-Factors
C41QS

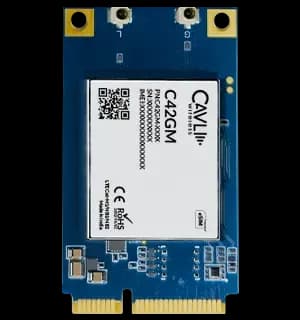

C42GM MiniPCIe
Technical Data
Cellular Bands Supported
Global : B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B14 / B17 / B18 / B19 / B20 / B25 / B26 / B28 / B66 / B70 / B85
3GPP Release : LTE 3GPP E-UTRA Release 14 Cat M1/ LTE NB1/NB2
Supported Location Services
GPS,BeiDou
OS
FreeRTOS
Cellular Connectivity Download & Uplink Speed (* Peak Values)
Cat NB2 : Peak DL 127 Kbps & UL 158.5Kbps
Cat NB2 : Peak DL 127 Kbps & UL 158.5Kbps
Packaging
Dimension : 17.7 x 15.8 x 2.0 mm, LGA Package
Dimension : 17.7 x 15.8 x 2.0 mm, LGA Package
Interfaces
4xUART, 1xuSIM, 1xSWD, 1xI2C**, 1xSPI**, 2xGPIO**, 1xMAIN_ANT, 1xGNSS_ANT*
Applicable Industries
Health Care
Energy Utilities
Manufacturing
Automotive Logistics
